3DSS-iDX-450

A turnkey hydrographic survey solution with integrated peripherals for over-the-side pole-mounted and small AUV applications.

Basic Specifications
Frequency 450 kHz
Beamwidth 0.4°
Dimensions 56.8 cm × ø9.8 cm
Weight in Air 8.5 kg
Typical Power
Consumption		 25 W
Request Datasheet
  • Fully integrated AML MicroX Sound Velocity Sensor
  • Fully integrated SBG Ellipse2-E with GNSS Aiding -or-
  • Fully integrated SBG Navsight Ekinox with Septentrio GNSS Aiding
  • Fully Integrated or external GNSS
  • Proven Bathymetry Accuracy and Repeatability (IHO Exclusive Order).
  • High Resolution True 3D Imagery.
  • Real-time 3D point cloud display and target capture software.
  • Simultaneous 3D Side-scan, 2D Side-scan, and Bathymetry data outputs.
  • Wide swath coverage, up to 14 times water depth.
  • Patented processing techniques as well as beamforming eliminates multipath and surface reflection interference.
  • Support for 3rd party hydrographic survey hardware and software.
  • Compact, Low Power, easy-to-use. Suitable for ASV and AUV applications.

3DSS-iDX incorporates a patented signal processing methodology that extends the single angle-of-arrival principle used in interferometric systems to accommodate multiple simultaneous backscatter arrivals (e.g. the seabed, sea surface, water-column, and multipath). The result is superior wide swath bathymetry and true 3D sidescan imaging and from a compact, easy-to-use sonar.

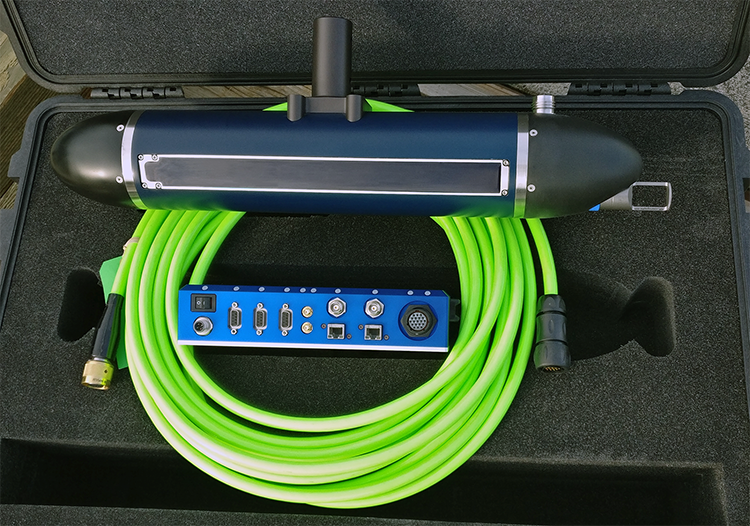

The iDX-450 integrates SVT and MRU sensors into the sonar head for turnkey operation. A Universal Sonar Interface Unit provides ultra-portable, easy operation with just a laptop and a battery or easy interface to external MRU, GNSS and INS systems on a fully equipped survey launch or ASV.

  • Shallow Water Hydrographic Surveys
  • Low Logistics Hydrographic Surveys
  • Habitat Mapping
  • Shallow Water IED Mine-hunting (MCM) Detection
  • Port & Harbor Security
  • Marine Debris Search
  • Subsea structure surveying / inspection
  • Dredging Operations
  • Underwater archaeology
  • ASV and AUV applications
  • Tailings Pond Surveys

Bundled with the 3DSS-iDX-450 is a feature-rich software suite allowing users to take full advantage of the sensors capabilities without additional third-party software. Some of the features provided include:

  • Raw-data visualization in both high-resolution 3D point cloud and traditional 2D sidescan formats.
  • Full control over sonar operating parameters including range, transmit pulse, gain settings, and more.
  • Raw-data recording for future playback or post processing in third party applications.
  • Bathymetric chart display overlaying pitch-corrected bathymetry onto a user provided navigational chart.
  • Target-capture and measurement capabilities.

The 3DSS-iDX-450 is also compatible with popular third-party applications such as Hypack, SonarWiz, CARIS, and QINSy.
