3DSS-DX-450-AUV

The 3DSS-DX-450 AUV integration package is a flexible, compact dual transducer sonar package configurable to unmanned platforms requiring high resolution 3D imagery.

Basic Specifications
Frequency 450 kHz
Beamwidth 0.4°
SoftSonar™ Dimension 14.08' x 3.10" x 1.85"
Transducer Dimensions 16.5" x 2.0" x 1.0"
System Weight in Air 4.2 kg
Typical Power
Consumption		 22 W
Depth Rating 100m standard
500m option
4000m option
Request Datasheet
  • Compact, Low Power, easy-to-use. Suitable for ASV and AUV applications.
  • 4000m Depth Rating.
  • Simultaneous 3D Side-scan, 2D Side-scan, and Bathymetry data outputs.
  • Proven Bathymetry Accuracy and Repeatability (IHO Exclusive Order).
  • High Resolution True 3D Imagery.
  • Real-time 3D point cloud display and target capture software.
  • Wide swath coverage, up to 14 times water depth.
  • Patented processing techniques as well as beamforming eliminates multipath over complex bottoms and wide swaths.
  • Support for 3rd party hydrographic survey hardware and software.

3DSS-DX-450-AUV incorporates a patented signal processing methodology that extends the single angle-of-arrival principle used in interferometric systems to accommodate multiple simultaneous backscatter arrivals (e.g. the seabed, sea surface, water-column, and multipath). The result is superior wide swath bathymetry and true 3D sidescan imaging and from a compact, easy-to-use sonar.

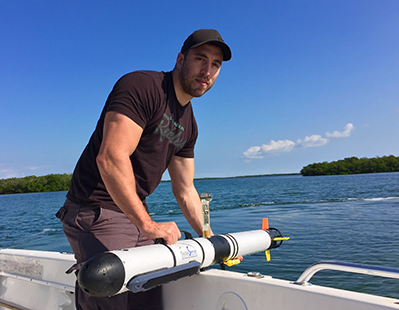

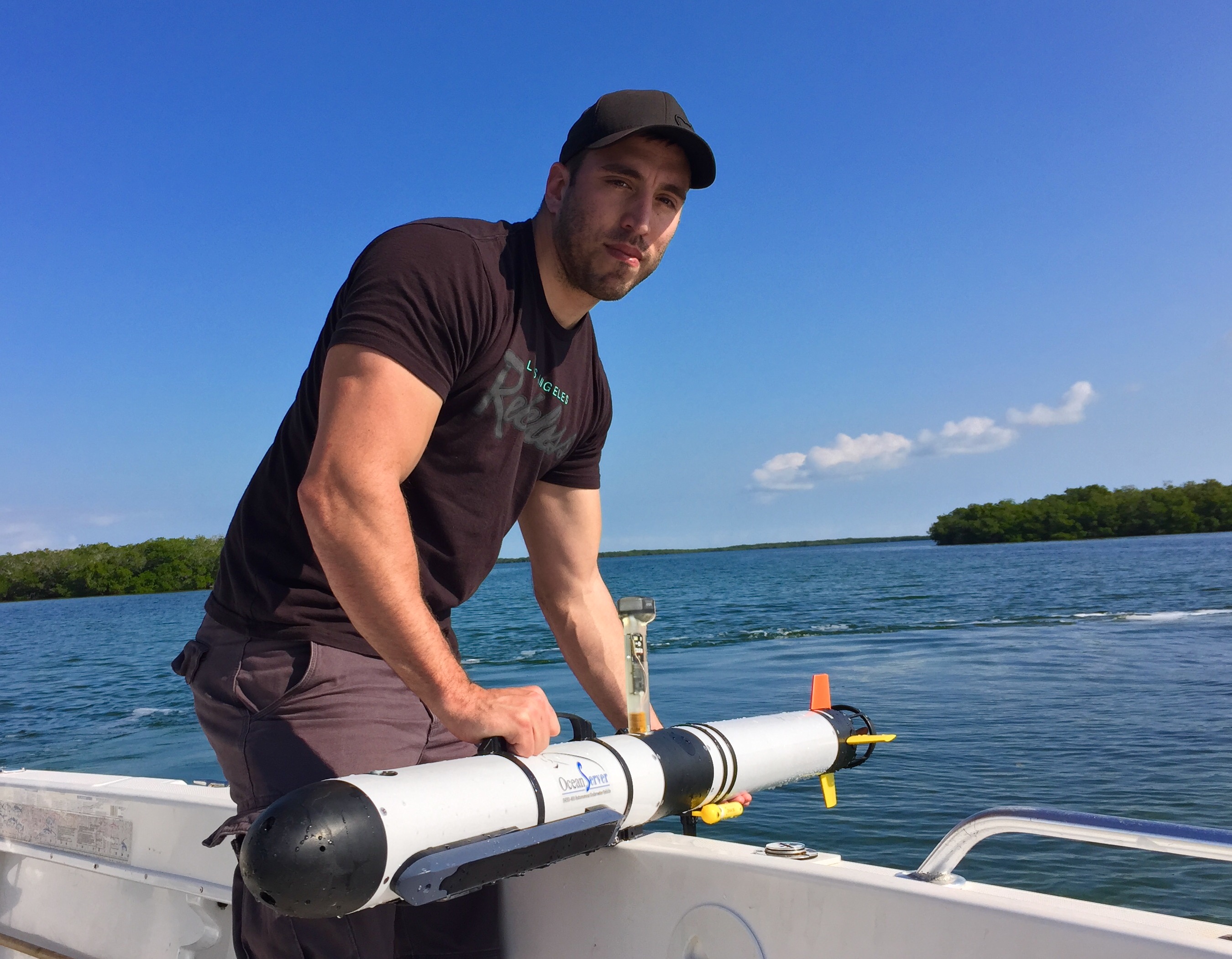

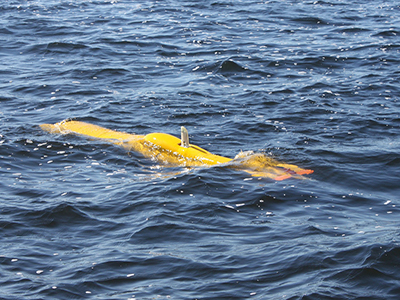

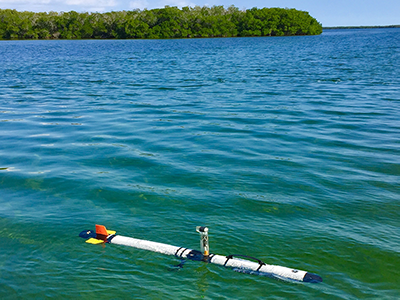

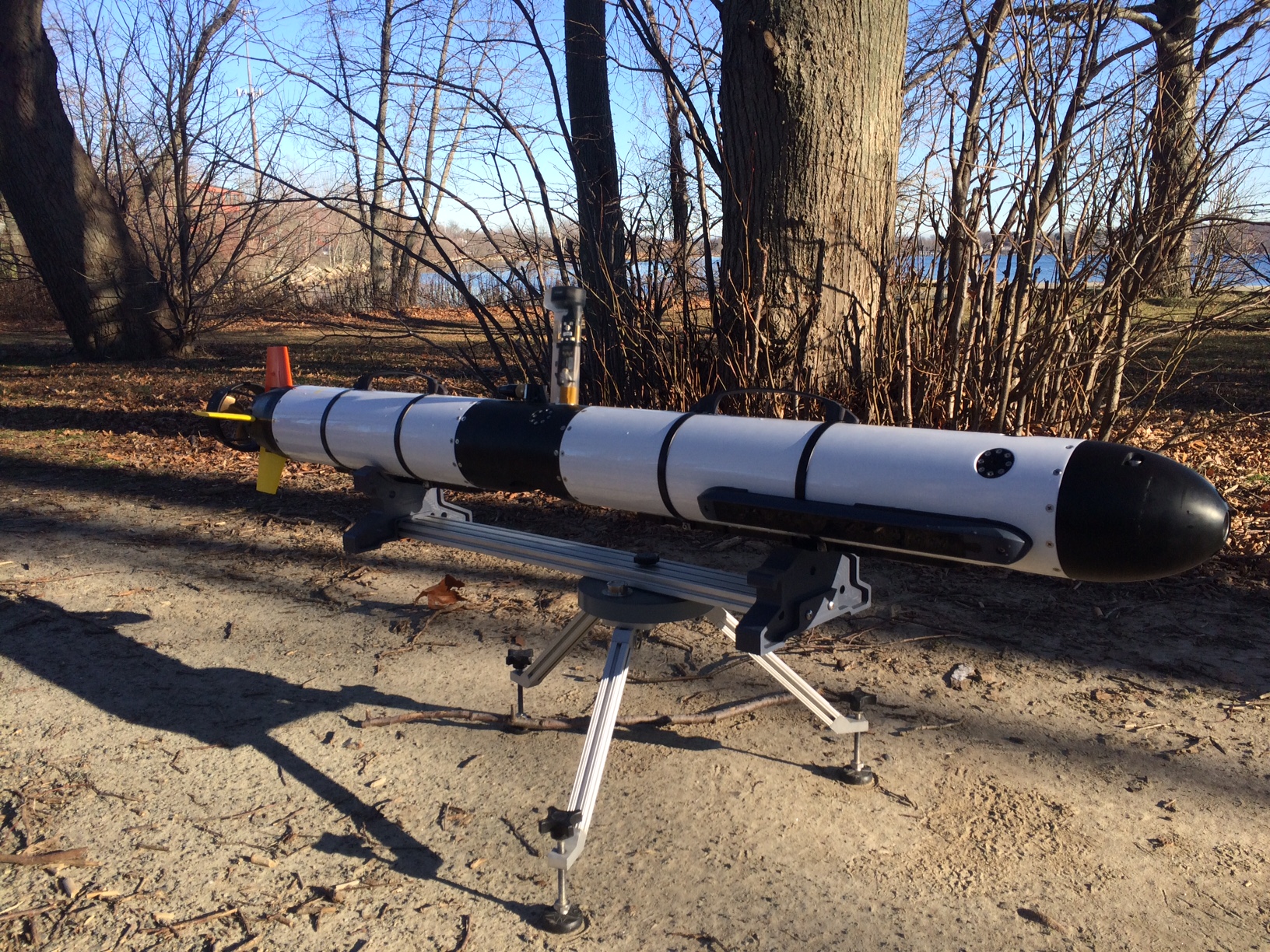

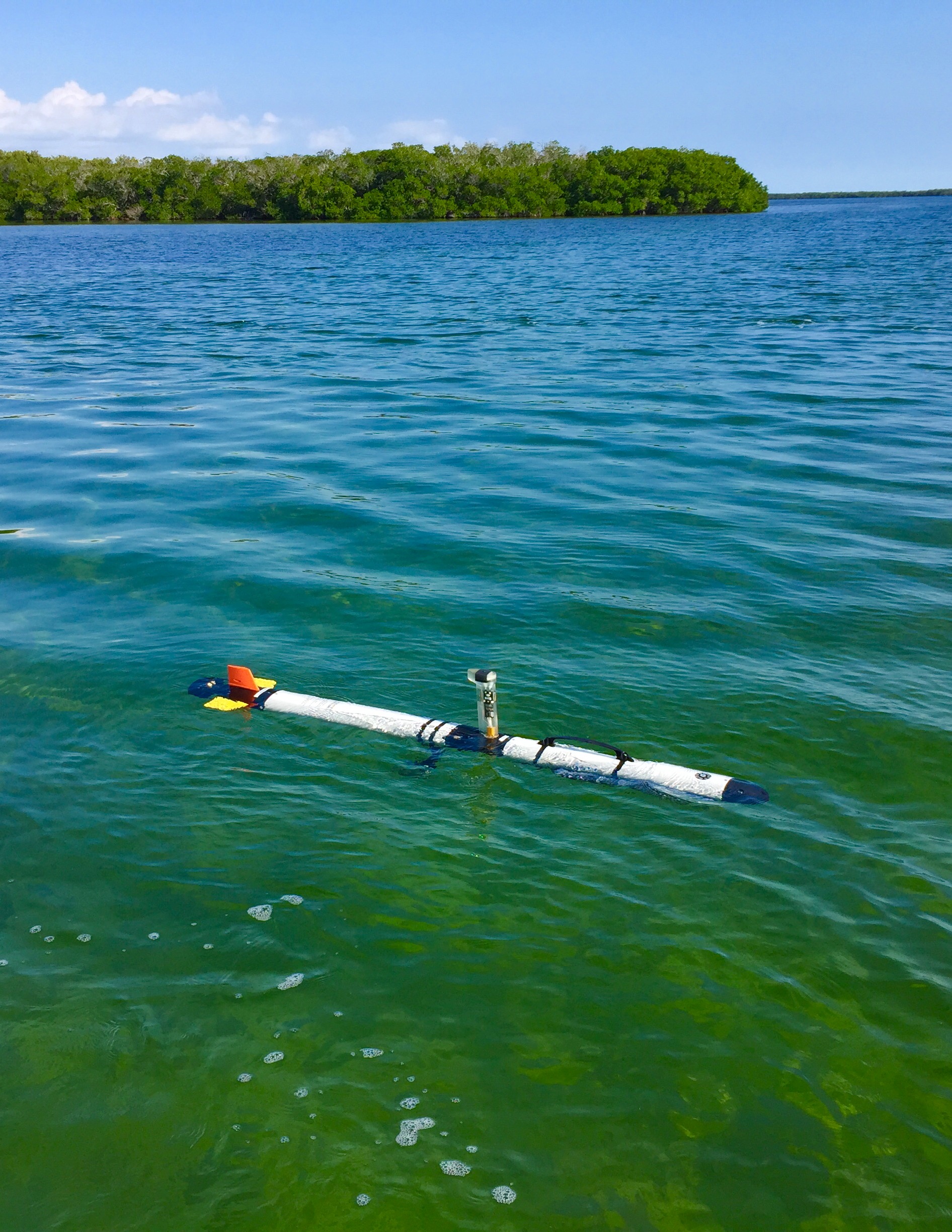

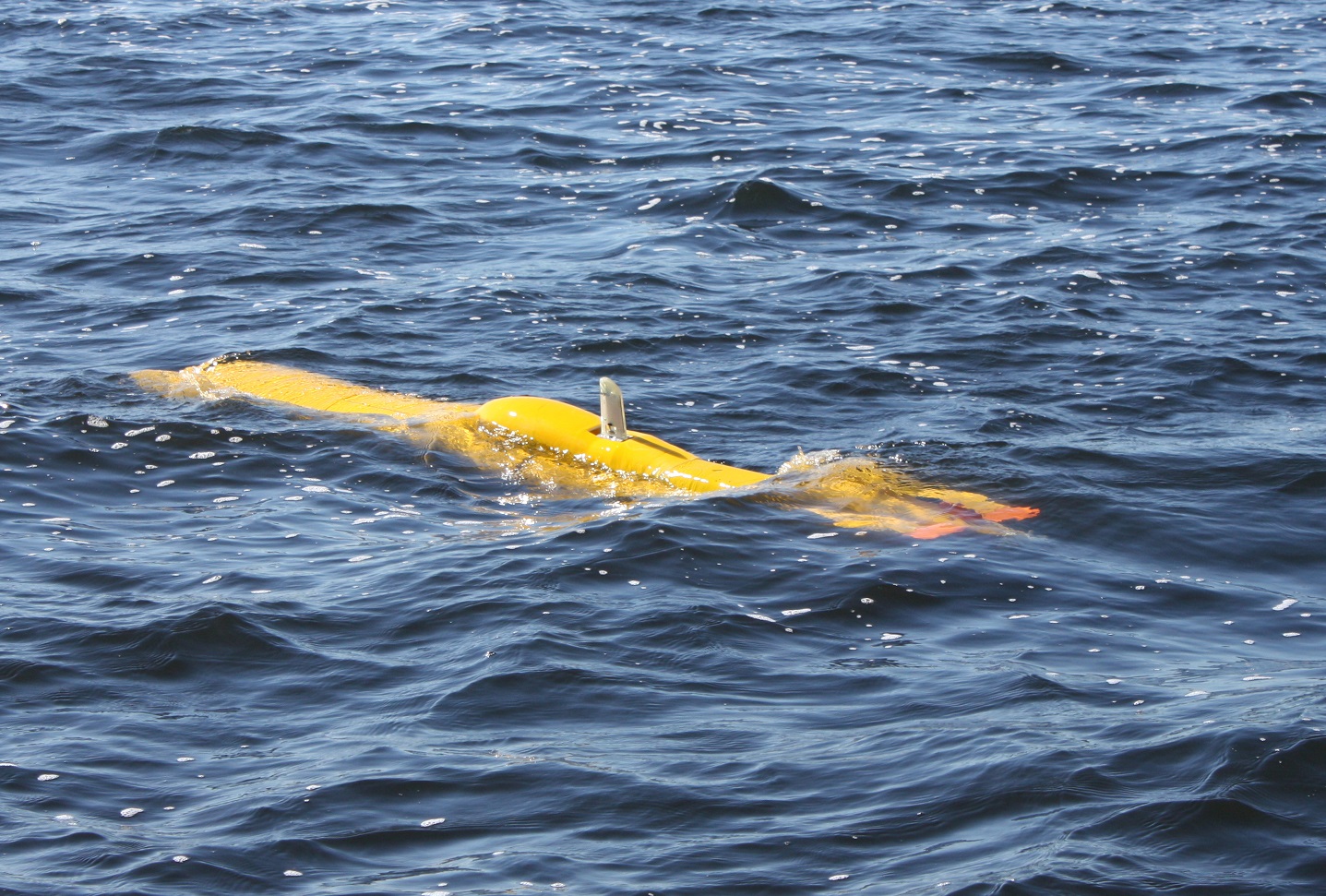

The DX-450-AUV provides multi-angle imaging to unmanned platforms over ultra-wide swath. Low logistics operation and low power requirements make the 3DSS-DX-450 AUV package the perfect sonar to provide wide swath 3D imagery on unmanned platforms from the surf zone to 4km below the surface.

  • Autonomous Hydrographic Surveys
  • Habitat Mapping
  • IED Mine-hunting (MCM) Detection
  • Port & Harbor Security
  • Marine Debris Search
  • Subsea structure surveying / inspection
  • Dredging Operations
  • Underwater archaeology
  • Rapid Assessment
  • Tailings Pond Surveys

Bundled with the 3DSS-DX-450-AUV is a feature-rich software suite allowing users to take full advantage of the sensors capabilities without additional third-party software. Some of the features provided include:

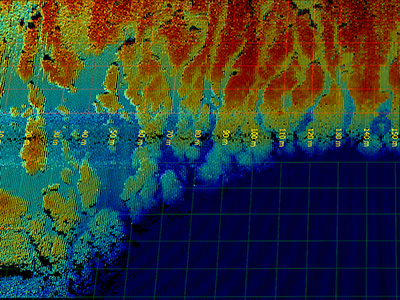

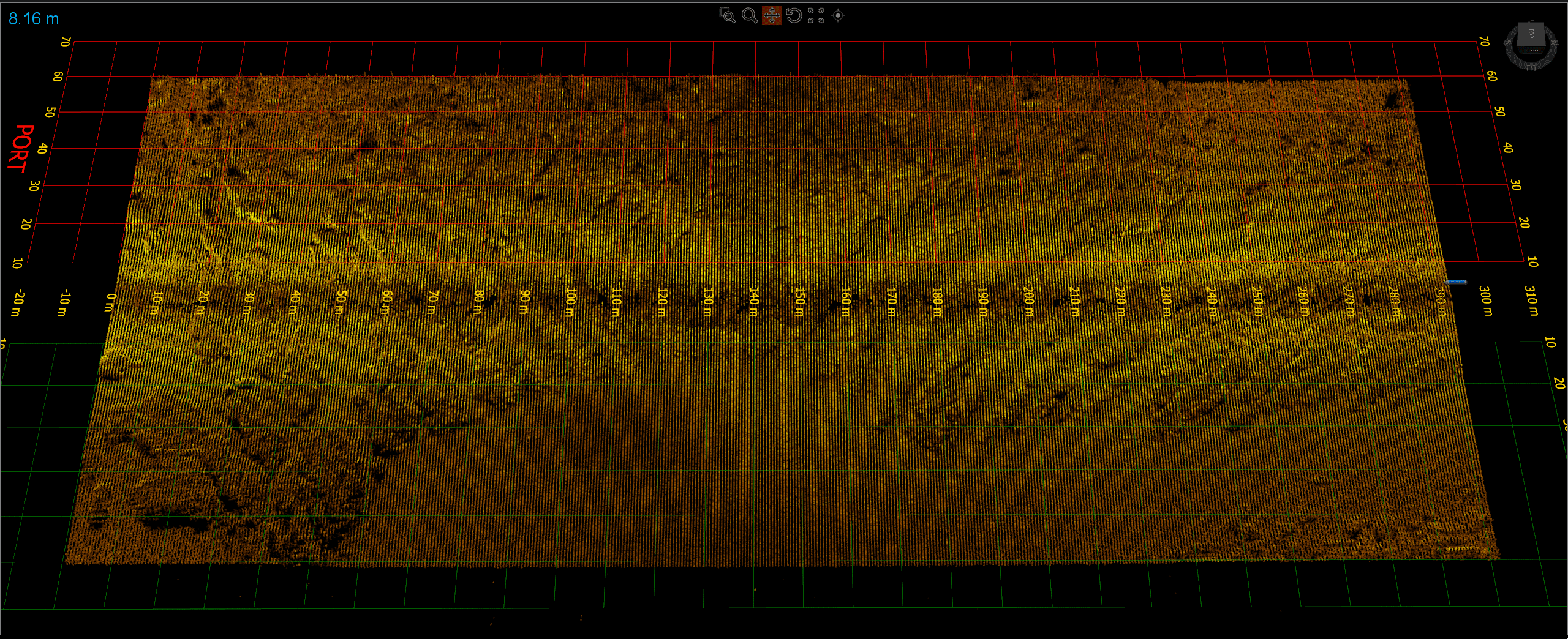

  • Raw-data visualization in both high-resolution 3D point cloud and traditional 2D sidescan formats.
  • Full control over sonar operating parameters including range, transmit pulse, gain settings, and more.
  • Raw-data recording for future playback or post processing in third party applications.
  • Bathymetric chart display overlaying pitch-corrected bathymetry onto a user provided navigational chart.
  • Target-capture and measurement capabilities.

The 3DSS-DX-450-AUV is also compatible with popular third-party applications such as Hypack, SonarWiz, CARIS, and QINSy.
